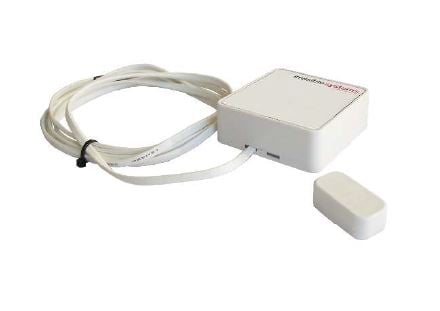

PULSE/STATUS LOGGER (124F)



Designed to monitor both energy usage from a utility meter and status change. Two volt-free digital inputs can measure pulses up-to 10Hz. Configurable to either count pulses (e.g. for water or electricity meters) or transmit on status change (e.g. for monitoring doors or roller shutters).

  • Easily attached to existing water/gas/electricity meters that have a pulse output (may require additional intrinsically safe protection barriers)

  • Monitoring consumption of energy within the utility and other industries
  • Battery powered

  • Built in antenna

  • Available as a ‘data as a service’ offering

  • Configurable measure and transmit interval

  • Configurable transmit interval for each mode (standard, warning and alarm)
  • Configured over the air from ISL LoRa™ USB dongle
124F



KEY FEATURES



battery (1)
notes
two-settings-cogwheels (3)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.



SIMPLE SET-UP

Our CQC compliant sensors are easy to set up and do not require integration with your existing IT infrastructure.

website (1)
patient
bell (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

PROVEN PARTNER

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.



PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent breaching critical levels, and so safeguard patient well-being.





ADDITIONAL INFORMATION



CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.



LORA

The 124F transmitter connects to the cloud via Invisible Systems cellular LoRa™ gateways, providing low power, reliable communication and long battery life. Invisible Systems can provide their in-house built Realtime-Online™ cloud portal to make this an ideal low-cost end-to-end solution.

LORAWAN

The ISL124F is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.







TECHNICAL DATA

COMMS



Frequency/Band (LoRa): EU 868Mhz Other regions available on request

Frequency/Band (LoRaWAN): EU863-870 Other regions available on request

Expected range (line of sight): Up to 10km

Power: LoRaWAN 25mW (14 dBm) LoRa: 100mW (20 dBm)

APPROVALS

Approvals: CE, FCC, IC, Other regions available on request

FCC ID: Contains module VPYCMABZ

ICID: Contains module 722C-CMABZ

ENVIRONMENTAL



Dimensions (mm): 70x70x24

Enclosure colour: White

Enclosure plastic type: ABS

Operating Temp Range: -20°C to +60°C

Operating Humidity Range: 30% RH to 90% RH

Battery: 1 x AA (1400 mAh)

Batteries type: Lithium Thionyl Chloride (Non rechargeable)

Expected battery life, 6 min Tx interval: Up to 1.8 years

Expected battery life, 15 min Tx interval: Up to 3.6 years

Expected battery life, 6 hour Tx interval: Up to 10 years

Operating lifetime: Up to 10 years

Power type: Battery 3.6VDC

GENERAL

Measurement interval range: 10 secs - 60 mins

Tx interval range (multiple of measure intervals): 1 min - 6 hours

PULSE/STATUS INPUTS



Digital status inputs: 2

Pulse measurement frequency 10Hz

Minimum pulse width 100ms

Cable: 1m 4-core PVC (optional)

OPTIONAL INPUTS



1 x external magnetic switch contact
