LORA RF GATEWAY (ISL058)



The ISL058 LoRa RF Gateway connects Invisible Systems’ range of LoRa devices to their cloud platform, Realtime-Online. It has an integrated LoRa RF transceiver capable of receiving wireless data from up to 10km away, internal memory for logging packet data, and an integrated 2G/3G modem to send stored data to Realtime-Online.

  • 2G or 3G cellular modem

  • Multi-network SIMs and cellular roaming capability

  • Integrated RF 868MHz LoRa transceiver (915MHz US & AUS versions

  • Internal 2Mb memory, with storage capacity of upto 1 year (15 minute data profile)

  • Small footprint

  • Wireless range upto 10km line-of-sight from Invisble Systems’ tranmsitters

  • Operates in conjunction with Realtime-Online cloud platform

  • Duplex bi-directional communications via GPRS

  • CE, FCC, IC, ETSI, RED, CB Scheme approved

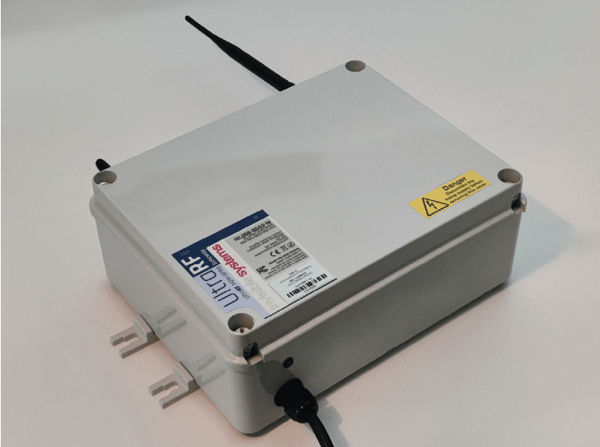

Gateway LoRa RG



KEY FEATURES



battery (1)
notes
two-settings-cogwheels (3)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.



SIMPLE SET-UP

Our CQC compliant sensors are easy to set up and do not require integration with your existing IT infrastructure.

website (1)
patient
bell (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

PROVEN PARTNER

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.



PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent breaching critical levels, and so safeguard patient well-being.





TECHNICAL DATA

RF RADIO TRANSCEIVER

Network Topologies: Point-to-Point, Point-to-MultiPoint

Security/Encryption: 128 bit data encryption

Frequency Band: 868MHz UK (915MHz US & AUS)

RF Data Rate: Variable bit rate

RF Technology: Frequency Hopping Spread Spectrum (FHSS) (US & AUS ONLY)

Modulation: DSSS

Output Power: 100mW (20dBm)

Maximum Radiated Power (EIRP): 45.13mV/m measured at 3 meter

Range Line-of-sight (Outdoor): Up to 10km

Sensitivity: -132dBm

QOS Management: RSSI, LQI

Link Budget: 160dB maximum

Memory: 2Mb

ELECTRICAL/ENVIRONMENTAL

Supply Voltage: 240VAC

Current consumption: Peak 1.5A

Temperature (Operating): -20°C to +55°C

Temperature (Storage): -20°C to +55°C

Dimensions: 240mm x 190mm x 90mm

Weight: 1kg



2G VERSION

2G GSM Quad-Band: 850 / 900 / 1800 / 1900 MHz

2G Output Power: Class 4 (2W) for 850 / 900, Class 1 (1W) for 1800 / 1900

GPRS Class 10: DL: max. 85.6 kbps, UL: max. 42.8 kbps

3G VERSION



3G Dual-Band UMTS (WCDMA/FDD): EU: 900 and 2100 MHz, US: 850 and 1900 MHz

Dual-Band GSM: EU: 900 and 1800 MHz, US: 850 and 1900 MHz

3G Output Power: Class 4 (2W) for 850 / 900, Class 1 (1W) for 1800 / 1900

HSDPA Cat.8 / HSUPA Cat.6 Data Rates: DL: max. 7.2 Mbps, UL: max. 5.76 Mbps

EDGE Class 12 Data Rates: DL: max. 237 kbps, UL: max. 237 kbps

GPRS Class 12 Data Rates: DL: max. 85.6 kbps, UL: max. 85.6 kbps

CERTIFICATIONS



FCC ID: ZWZ-ISL067, QIPBGS2

Industry Canada ID: 12053A-ISL067

CE: ETSI EN 300 220-2 V2.4.1 (2012-05)

Safety: TRAC TS080000 EN60950-1

ROHS: YES
