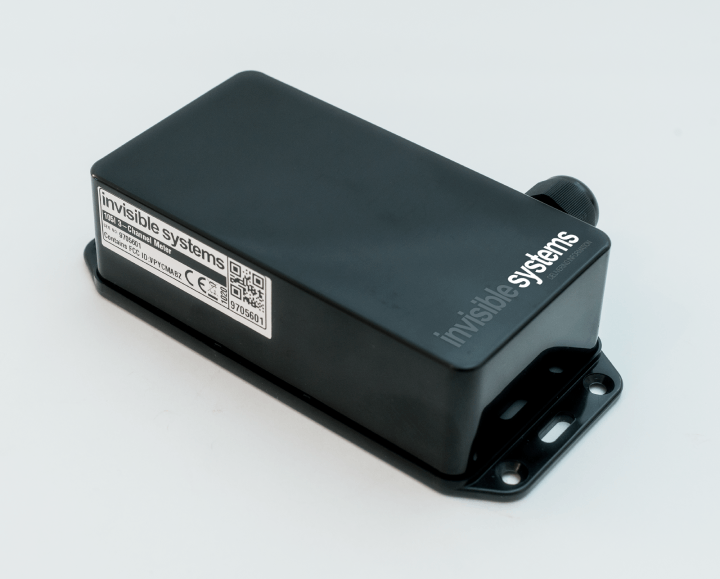

3-CHANNEL METER (105I)
The Invisible Systems 3-Channel Meter (105I) is designed to measure electrical energy in up to 3 circuits using 0.33V split-core current transformers and allows measurement of both current and energy consumption (in KWh).
Measures current and energy for main incomers or sub-metering points
No direct mains connection required
Available as a ‘data as a service’ offering
Configurable measure and transmit interval
- Configured over the air from ISL LoRa™ USB dongle
LONG BATTERY LIFE
Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.
Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.
Our CQC compliant sensors are easy to set up and do not require integration with your existing IT infrastructure.
Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.
Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.
PROACTIVE ALARM SYSTEM
Pro-active alerts ensure that your team can prevent breaching critical levels, and so safeguard patient well-being.
CONFIGURABLE THRESHOLDSConfigurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.
The 105I transmitter connects to the cloud via Invisible Systems cellular LoRa™ gateways, providing low power, reliable communication and long battery life. Invisible Systems can provide their in-house built Realtime-Online™ cloud portal to make this an ideal low-cost end-to-end solution.
The ISL105I is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.
Frequency/Band (LoRa): EU 868Mhz Other regions available on request
Frequency/Band (LoRaWAN): EU863-870 Other regions available on request
Expected range (line of sight): Up to 10km
Power: LoRaWAN 25mW (14 dBm) LoRa: 100mW (20 dBm)
Approvals: CE, FCC, IC, Other regions available on request
FCC ID: Contains module VPYCMABZ
ICID: Contains module 722C-CMABZ
Dimensions (mm): 144 x 65 x 40
Enclosure colour: Black
Enclosure plastic type: ABS
Operating Temp Range: -20°C to +60°C
Operating Humidity Range: 30% RH to 90% RH
Battery: 1 x C-cell (8500 mAh)
Batteries type: Lithium Thionyl Chloride (Non rechargeable)
Expected battery life, 6 hour Tx interval: Up to 10 years
Operating lifetime: Up to 10 years
Power type: Battery 3.6VDC
Measurement interval range: 10 secs - 60 mins
Tx interval range (multiple of measure intervals): 1 min - 6 hours
Transformers: Compatibility with 0.33V current transformers
Ranges: CT sizes available from 5 to 2500A
Connection: No mains voltage connection
